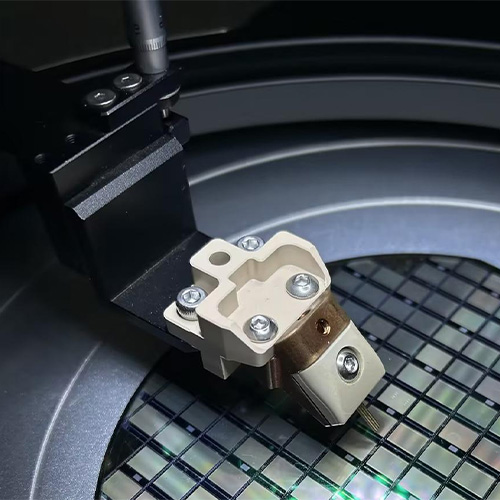

CindbestCBHC-200 High current fixture Maximum voltage: 500V Working temperature range: -55 ℃ to 300 ℃
high current fixture
◆ CBHC-200 high current fixture ◆ High current fixture
◆ Maximum voltage: 500V
◆ Maximum current (pulse): 200A. The maximum pulse width is 1ms and the maximum duty cycle is 1%.
◆ Maximum current during load cycle (DC): 20A
◆ Working temperature range: -55 ℃ to 300 ℃
◆ Ground resistance:>100 G Ω at 500V
產品規格書：下載
