10μm resolution, Swiss made precise screw, effective and precise for I-V/C-V /RF submicron probing test, highly rigid structure, spring loaded X-Y-Z, stable and backlash free

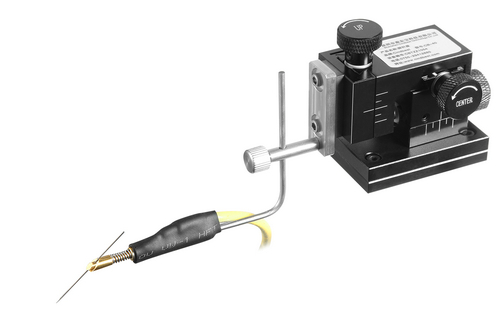

CINDBEST CB-40 | cost-effective and precise micropositioner for I-V/C-V probing test
|
Features / Applications
◆ Highly rigid structure, spring loaded X-Y-Z, stable and backlash free
◆ Linear, no recoil moving
◆ 30 degree inclining adjustment
◆ Compatible with coaxial / triaxial probe holder
◆ Swiss made precise screw
|
 |
Specifications
Chuck Stage
|
Model |
CB-40 |
|
Dimension |
62mm(L)*38mm(W)*45mm(H) |
|
X-Y-Z travel range |
12mm*12mm*12mm |
|
X-Y-Z travel resolution |
10μm |
|
Mounting |
Magnetic |
|
Weight |
200g |
Specifications and designs are subject to change without notice.
|
