Features
- High Input Impedance
- Low Input Capacitance
- DC to 350 MHz
- Can be mounted on any micropositioner with any probing system

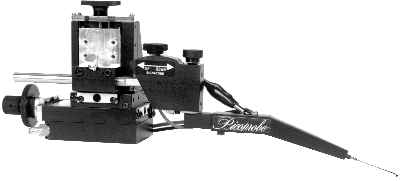

FIGURE 1
High impedance probes, PICOPROBE® MODEL 18C and MODEL 19C, combine the most advanced MOS and bipolar technologies with special, low capacitance packaging techniques to achieve truly remarkable electronic measurement capabilities. While being manufactured each instrument is individually optimized for the best possible performance. The extremely low input capacitance, high input impedance, and almost negligible input leakage current permits the direct probing of even the most sensitive MOS dynamic nodes. At the same time, the full dc capability of this Picoprobe coupled with the high speed capability permits the full characterization of circuits.
The 10 micron tungsten probe wire is tapered to an extremely fine point to allow probing of the finest lines. The fine probe wire flexes when in contact with the circuit, so that damage to the circuit and probe point is minimized. Also the flexing tends to keep the probe point in contact with the circuit even in the presence of probe table vibrations. Model 18C and Model 19C probe tips are also available with a 20 and 50 micron tungsten probe wire sharpened to less than 1 and 3 microns respectively.
The circuitry located in the Model 18C and Model19C Picoprobe® body is very rugged; however, the unprotected MOS input in each probe tip is subject to destruction by electrostatic discharge. Should the probe tip become damaged, it can easily be removed and replaced.
| Specifications | Model 18C | Model 19C |
|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(50 ohm input) 20 to 1 |
(50ohm input) 20 to 1 |
|
*For 3ns or longer rise and fall signals. Speed limitations of the capacitance cancelling circuitry results in approximately 0.06pF input capacitance for 1ns or shorter rise or fall inputs.
** For 0V to +15V please see the higher voltage part number in the table below. |
||
|
|

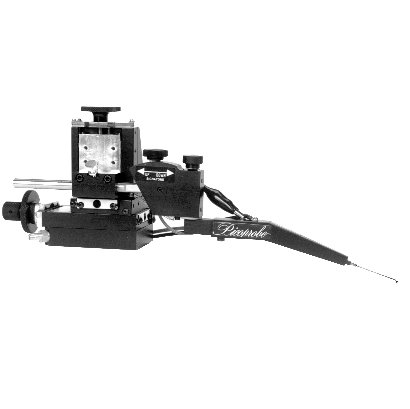

||
| FIGURE 2 | ||
| Picoprobe® Model 18C and Model 19C Replacement Tips* | ||||
|---|---|---|---|---|
|
Standard Part Number |
Higher Voltage Part Number |
Shaft Diameter |
Point Radius |
|
| 18C-1-5 | 18C-1-5-HV | 5 micron | <0.1 micron | |
| 18C-1-10 | 18C-1-10-HV |
|
|
|
| 18C-1-20 | 18C-1-20-HV |
|
|
|
| 18C-1-50 | 18C-1-50-HV |
|
|
|
| 18C-2-5 | 18C-2-5-HV | 5 micron | <0.1 micron | |
| 18C-2-10 | 18C-2-10-HV |
|
|
|
| 18C-2-20 | 18C-2-20-HV |
|
|
|
| 18C-2-50 | 18C-2-50-HV |
|
|
|
| 18C-4-5 | 18C-4-5-HV | 5 micron | <0.1 micron | |
| 18C-4-10 | 18C-4-10-HV |
|
|
|
| 18C-4-20 | 18C-4-20-HV |
|
|
|
| 18C-4-50 | 18C-4-50-HV |
|
|
|
| FIGURE 3 |
photos not to scale
|
